Place of Origin:Hebei China (Mainland)
Brand Name: Tian Yue
ISO 9001:2002:Company certificate

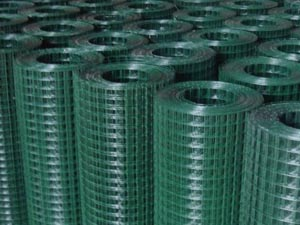

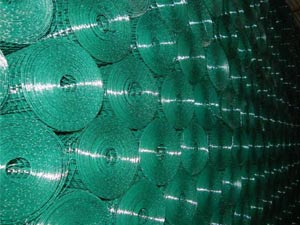

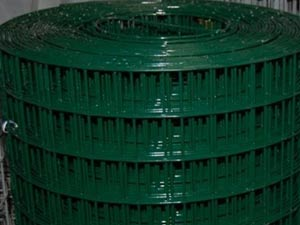

Product Name: PVC Welded Wire Mesh
Applications: Screen
Minimum Order Quantity: 300 Square Meter/Square Meters more or less
| Quantity: | |
|---|---|

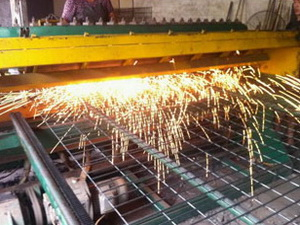

PVC Welded mesh offer high stability, as the longitudinal and cross wires are welded at the crossing points. Thanks to the variable mesh size and wire diameter, it is possible to use welded mesh in a wide range of industrial sectors.
Material: High quality low carbon steel wire, stainless steel wire.
Feature: Corrosion resisting and oxidation-resisting.
|
|
Application: welded wire mesh with excellent corrosion resistance and oxidation resistance extensively used fencing, decoration and machinery protection material in agriculture, construction, transport, mine, sports field, lawn and various industrial fields.
|
|
|
|
Specification:
Aperture |
Wire diameter |
|
Inch |
Mm |
|
1/2" X 1/2" |
12.7 X12.7 |
0.5mm-0.8mm |
1/2" X 1/2" |
12.7 X12.7 |
0.6mm-0.9mm |
1/2" X 1/2" |
12.7 X12.7 |
0.7mm-1.1 mm |
1/2" X 1/2" |
12.7 X12.7 |
0.8mm-1.2 mm |
1/2" X 1/2" |
12.7 X12.7 |
0.9mm-1.3mm |
1/2" X 1/2" |
12.7 X12.7 |
1.0mm-1.4mm |
1/4" X 1/4" |
6.4 X6.4 |
0.5mm-0.8mm |
1/4" X 1/4" |
6.4 X6.4 |
0.6mm-0.9mm |
3/4" X 3/4" |
19.1X19.1 |
0.6mm-0.9mm |
3/4" X 3/4" |
19.1X19.1 |
0.7mm-1.1mm |
3/4" X 3/4" |
19.1X19.1 |
0.8mm-1.2mm |
3/4" X 3/4" |
19.1X19.1 |
1.0mm-1.4mm |
3/4" X 3/4" |
19.1X19.1 |
1.2mm-1.6mm |
5/8" X 5/8" |
16X16 |
0.8mm-1.2mm |
5/8" X 5/8" |
16X16 |
1.2mm-1.6mm |
1" X 1" |
25.4 X25.4 |
1.2mm-1.6mm |
1" X 1" |
25.4 X25.4 |
1.6mm-2.0mm |
1" X 1/2" |
25.4 X12.7 |
1.0mm-1.4mm |
1" X 1/2" |
25.4 X12.7 |
1.4mm-1.8mm |
2” X 2” |
50.8 X 50.8 |
1.3mm-1.7mm |
2” X 2” |
50.8 X 50.8 |
1.6mm-2.0 mm |
2” X 2” |
50.8 X 50.8 |
2.0mm-2.5 mm |
2” X 2” |
50.8 X 50.8 |
2.2mm-2.7 mm |
2” X 2” |
50.8 X 50.8 |
2.5mm-3.0mm |
2” X 2” |
50.8 X 50.8 |
3.0mm-3.5mm |
2" X 3" |
50.8 X 75 |
1.7mm-2.1mm |
2" X 4" |
50.8 X 100 |
1.8mm-2.3mm |
2” X 4” |
50.8 X 100 |
2.0mm-2.5mm |
3” X 4” |
75 X 100 |
2.5mm-3.0mm |
