Place of Origin:Hebei China (Mainland)
Brand Name: Tian Yue
ISO 9001:2002:Company certificate

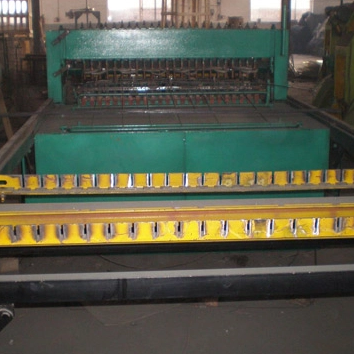

Product Name: Automatic Welded Mesh Machine
Applications: Screen
Minimum Order Quantity: 300 Square Meter/Square Meters more or less
| Quantity: | |
|---|---|
Function features:
1). This kind machine is our latest developed reinforcing mesh welding machine.
2). The line wire and the weft wire are pre-straight and pre-cut. The line wire is feeding by theservo motor, pulling the wire net by the servo motor automatically.
3). The welding power comes from the spring. It is easy to control the welding pressure.
4). The weft wire feeding from the multi hopper which capacity is 1.5t, more over ten times than the traditional hopper.
5). The new machine added the bear wire net and carries equipment that makes the working more convenience. The welding part is used the springiness input wire trunking that makes the welding copper use for long time.
Application:
The welded mesh can be used in the floor wall reinforcing mesh in the building,
reinforcing mesh in the tunnel, bridge and road.
|
Wire diameter | 5.0-12mm | Line wire? form | pre-cut wire |
Weft wire distance | 50-300mm | Weft wire form | ?pre-cut wire |
Line wire distance | 100-300mm | Rated voltage | 380V?50HZ |
?net width?(customized) | 2500mm | Rated power | 125KVA X 12 |
Welding speed | 50 times/min | Overall dimension | 24 X 6.0 X???2.65M |
line wire ?No. | 24 | Max. mesh length | 12000mm |
Wire diameter | 3-8MM | Line wire? form | pre-cut wire |
Weft wire distance | 50-200mm | Weft wire form | ?pre-cut wire |
Line wire distance | ?50-200mm | Rated voltage | 380V |
grid?width?(customized) | 2500mm | Rated power | 125KVA X?8 |
Welding speed | 60-80 times/min | Overall dimension | 22?X 6.0 X 2.45M |
line wire ?No. | 48 | Max. grid length | 12000mm |
