Place of Origin:Hebei China (Mainland)
Brand Name: Tian Yue
ISO 9001:2002:Company certificate

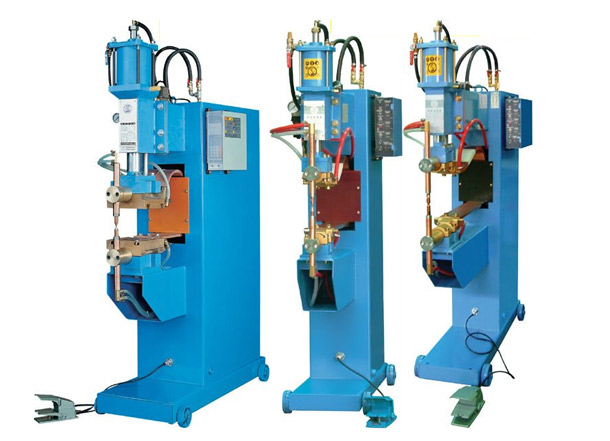

Product Name: Tread Spot Welding Machine
Applications: Screen
Minimum Order Quantity: 300 Square Meter/Square Meters more or less
| Quantity: | |
|---|---|
Features
Integrating microcomputer or programming control casing with simple, user-friendly interface and easy-operated pedal switch.
Using air cylinder to add pressure,this can ba adjusted conveniently and precisely.
The upelectrode pressure velocity can be adjusted freely with compact structure and swift movement.
Microcomputer controlled welding current, which is adjustable from 20%to 100%.
Three pulse (preheat,welding,temper) welding function: current increase,decrease and main pulse multi-cycle.
High efficiency,water cooled,SCR switch, reliable quality and stable current output.
Equipped with welding/debugging switch and head section is moved by manual switch for initial position.
Applications
High quality spot or projection welding of various low-carbon steel, stainless steel, non-ferrous metal panels, wires and meshes.
Automobile,aviation, machinery,construction.
|
Models and parameters:
MODEL |
RATED VOLTAGE |
RATED CAPACITY |
ELECTRODE SPACING |
MAX PRESSURE |
WELDING CAPABILITY |
D(T)N-25Q |
380V |
25KVA |
40-80mm |
400KGF |
2.5+2.5mm |
D(T)N-35Q |
380V |
35KVA |
40-80mm |
620KGF |
3.5+3.5mm |
D(T)N-40Q |
380V |
40KVA |
40-80mm |
800KGF |
3.8+3.8mm |
D(T)N-50Q |
380V |
50KVA |
40-80mm |
800KGF |
4.0+4.0mm |
D(T)N-63Q |
380V |
60 KVA |
50-100mm |
800KGF |
4.5+4.5mm |
D(T)N-80Q |
380V |
80 KVA |
50-100mm |
1000KGF |
5.0+5.0mm |
D(T)N-100Q |
380V |
100 KVA |
50-100mm |
1000KGF |
5.5+5.5mm |
D(T)N-150Q |
380V |
150 KVA |
50-100mm |
1200KGF |
6.0+6.0mm |
D(T)N-200Q |
380V |
200 KVA |
50-100mm |
1200KGF |
6.5+6.5mm |
