Place of Origin:Hebei China (Mainland)
Brand Name: Tian Yue
ISO 9001:2002:Company certificate

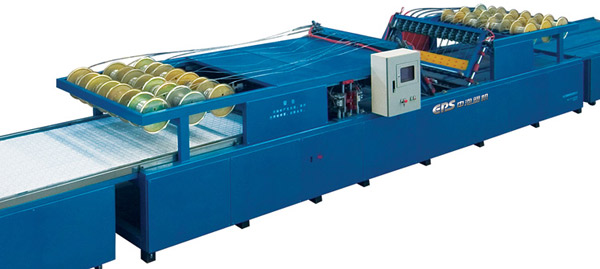

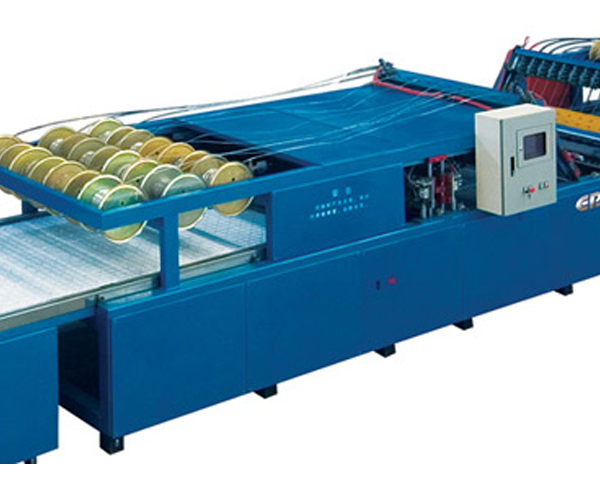

Product Name: Inserting Wire Machine
Applications: Screen
Minimum Order Quantity: 300 Square Meter/Square Meters more or less
| Quantity: | |
|---|---|
Characteristics:
This kind of machine adopts PLC touching screen control system. The power is pneumatic and step motor. It could insert and cut wire, flat mesh and foam board automatically, and the finished product is a steel polystyrene splint. The production line has high automation and production efficient, low welding rate, high intensity and even welding point; the mesh sheet is also flat.
Usage: Apply to the piezoelectric of the electronic head automatic inserting wire, dispensing.
|
| Input Power Supply | AC380V 50HZ 75KVA | |
| Air Source Equipment | 3m3/min 0.6Mpa | |
| Standard size | Wire Mesh Structure | 50mmX50mm |
| Welded Mesh Wire Diameter | 1.8-2.5mm or 2.5-3.0mm | |
| Inserting Wire Diameter | 1.8-2.5mm or 2.5-3.0mm | |
| Thickness of EPS core | 50mm-100mm | |
| Structure of Inserting Wire | sparse, dense inserting single, double sides mesh | |
| Distance between EPS Core and Mesh | 10mm | |
| Length | 3000mm-6000mm | |
| Width | 1220mm | |
| Non-standard size | Wire Mesh Structure | As Requirement |
| Welded Mesh Wire Diameter | 3.0-3.5mm or 3.5-4.0mm or as requirement | |
| Inserting Wire Diameter | 3.0-3.5mm or 3.5-4.0mm or as requirement | |
| Thickness of EPS core | 100-150mm or as requirement | |
| Productivity | Dense inserting: 400-500m2/8hours Sparse Inserting: 700-800m2/8hours | |
| Material | Wire Materials | Galvanized or cold drawing low carbon wire |
| Material of EPS Core | Fire resistance type | |
| 3D panel lack welding rate | ≤3% | |
| Measurement of the machine | 3d panel machine Length | 13500mm |
| 3d panel machine Width | 1800mm | |
| 3d panel machine Height | 1700mm | |
| 3d panel machine Weight | 4000kg | |
