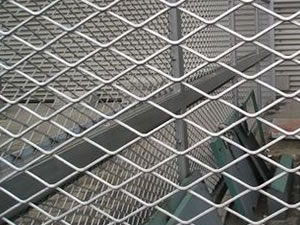

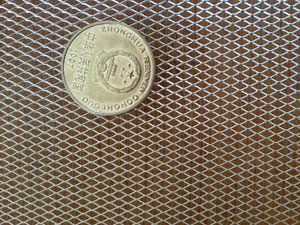

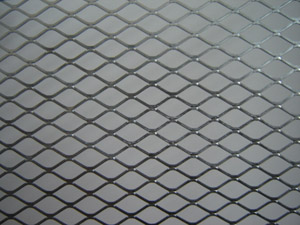

Mini Expanded Metals

Surface treatment:
Anodizing, Coating, Electro-galvanizing, Hot Dip Galvanizing, Painting, Powder Coating, spray paint.

Mini Expanded Metal Application:
Screening,Coverings for filters, Masks for radios and record players, Aesthetic paneling, Decorations and so on. Micromesh provides superior heat transfer characteristics. It can be made acoustically neutral for applications such as dent guards in audio speakers. It can be flattened to reduce thickness and provide a smoother surface; made non-nesting to allow wrapping on itself without losing air flow capability; annealed for improved formability; and coated with either metallic or organic compounds.

Specification of Expanded Metal Mesh
Sheet Thickness	Opening in Width	Opening in Length	Stem	Roll Width	Roll Length	Weight
	mm	mm		mm	mm	kg/m2
0.5	2.5	4.5	0.5	0.5	1	1.8
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	15	40	1.5	2	2	1.85
1.2	15	40	1.5	2	4	2.3
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
3	40	80	3.8	2	4	5
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26
