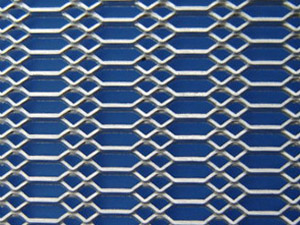

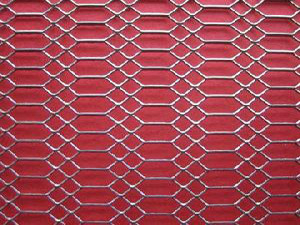

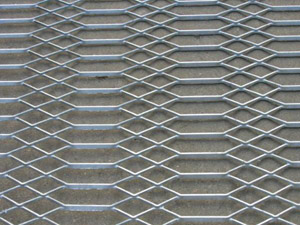

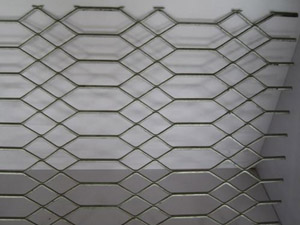

Special Expanded Metals

Place of Origin:Hebei China (Mainland)
Brand Name: Tian Yue
ISO 9001:2002:Company certificate
Product Name: Special Expanded Metals
Applications: Screen
Minimum Order Quantity: 300 Square Meter/Square Meters more or less

Quantity:
Availability:





Inquire

Product Description

Material:In generally,the materials are low carbon,stainless steel,aluminum.We can supply the material quality certificate for you.

Specification of expanded metal:

Item	Short way	Long way			WeightPer sheet
	Of diamond	of diamond	Thickness	Width	4feet*8feet
	(SWD)	(LWD)	(T)	(W)	(LWD)*(SWD)
YLD-1	34 mm ( 1.339 " )	135.4 mm ( 5.331 " )	4.5 mm ( 0.177 " )	7.0 mm ( 0.276 " )	41 kg.
YLD-2	34 mm ( 1.339 " )	135.4 mm ( 5.331 " )	6.0 mm ( 0.236 " )	7.0 mm ( 0.276 " )	55 kg.
YLD-3	34 mm ( 1.339 " )	135.4 mm ( 5.331 " )	6.0 mm ( 0.236 " )	9.0 mm ( 0.354 " )	71 kg.
YLD-4	36 mm ( 1.417 " )	101.6 mm ( 4.000 " )	4.5 mm ( 0.177 " )	7.0 mm ( 0.276 " )	36 kg.
YLD-5	36 mm ( 1.417 " )	101.6 mm ( 4.000 " )	6.0 mm ( 0.236 " )	7.0 mm ( 0.276 " )	48 kg.
YLD-6	36 mm ( 1.417 " )	101.6 mm ( 4.000 " )	6.0 mm ( 0.236 " )	9.0 mm ( 0.354 " )	67 kg.

Features
1.Comes from the press after having been die cut and expanded.
2.Ideal for safety guards on equipment or machinery
3.Economical and wear-resistance
