Place of Origin:Hebei China (Mainland)
Brand Name: Tian Yue
ISO 9001:2002:Company certificate
Product Name: Standard Expanded Metals
Applications: Screen
Minimum Order Quantity: 300 Square Meter/Square Meters more or less
| Quantity: | |
|---|---|

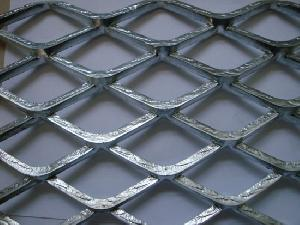

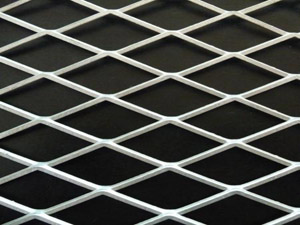

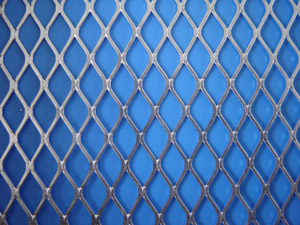

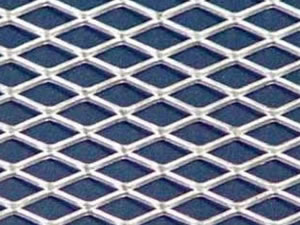

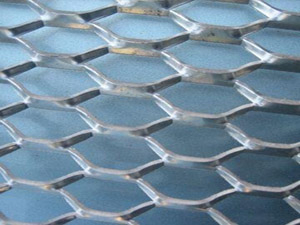

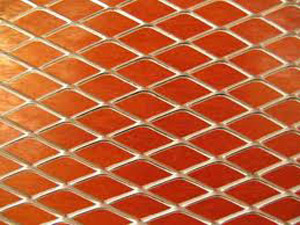

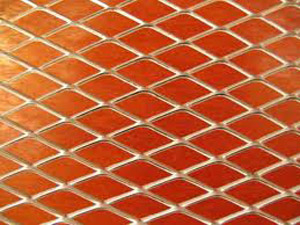

standard expanded metal lath
The standard expanded metal mesh sepcification:
Metal :
Beautiful appearance ,light weight and well -ventilated etc.
It's widely used in railway engines, petrol
The Expanded Metal Mesh:
Material:Stainless steel sheet,Low carbon steel sheet and Al-Mg alloy plat etc.
Specification:
Mesh Thickness(mm): 0.3-8.0
SWD:2-56
LWD:3-150
Strand Width:0.5mm-10mm.
 |  |
 |  |
| Specification of Expanded Metal Mesh | ||||||
| Sheet Thickness | Opening in Width mm | Opening in Length mm | Stem | Roll Width mm | Roll Length mm | Weight kg/m2 |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
